Swiftly move DEF around your facility with this skid. It is equipped with a weights and measures-approved mass flow meter capable of transfering DEF at flow rates of 40 to 250 GPM. Designed with versitility in mind, this system can unload both railcars and transports.

The system's control console selector switch allows flow rate adjustment to match the task required - whether that be receiving to storage, storage to loadout, receiving to loadout or storage to tote packaging (depending on the model).

A non weights and measures version is available for scenarios where no DEF custody transfer is involved.

Meter Specifications:

• Weights & measures approved meter
• System flow rates of 40 to 250 GPM
• 3" Stainless steel air eliminator
• Optional MAG meter instead of mass flow meter
• Slip ticket printer
• Presetable volume

Pump Specifications:

• 3" x 3" Stainless steel self-priming pump
• Stainless steel & DEF compatible seal
• 10 HP 3 phase TEFC motor
• Optional 480 volt 3 phase power center with variable frequency drive (VFD)
• Air supply must be available

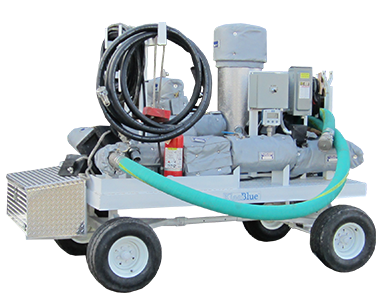

Easily maneuver this transloading trailer into place. These four-wheel pneumatic tire towable trailers allow precise position between rail car and transport trailer. The added mobility allows units to be moved around locations or between facilities.

Engineered with a weights and measures-approved mass flow meter, these systems are capable of transfering DEF at flow rates of 40 to 250 GPM.

Designed with actual day-to-day use in mind, these systems can be equipped with heating and insulation to allow for offloading DEF even in the most extreme temperatures.

Meter Specifications:

• System flow rates of 40 to 250 GPM
• Stainless steel turbine meter
• Resettable register
• Option: Weights & measures approved meter

Pump Specifications:

• 3" Stainless steel self priming pump
• DEF compatible seal
• Electric Option: 10 HP 3 phase TEFC Motor
• Electric Option: 480 volt power control panel & cable with power disconnect
• Gas Option: 13 HP Honda electric-start gasoline engine

Easily maneuver this transloading trailer into place. These four-wheel pneumatic tire towable trailers allow precise position between rail car and transport trailer. The added mobility allows units to be moved around locations or between facilities.

These systems come fully assembled and can be easily towed into place.

Meter Specifications:

• 3" Stainless steel turbine meter
• Resettable register

Plumbing Specifications:

• 20' of 3" Suction & discharge hoses
• Stainless steel filter with 1-micron cartridges
• Stainless steel flanges & welded fittings

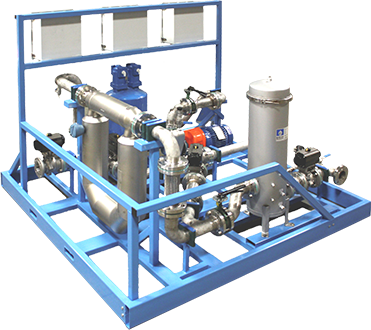

Transload directly from rail to transport trucks.

These systems come fully assembled and can be easily installed.

Meter Specifications:

• NTEP weights & measures DEF approved meter
• System flow rate of up to 250 GPM
• NTEP meter register & preset controller
• Electronic ticket print
• Air eliminator

Plump Specifications:

• Industrial grade stainless steel self-priming centrifulgal pump
• Gasoline powered engine pump drive for skid
• Diesel generator powered pump for enclosed trailer unit

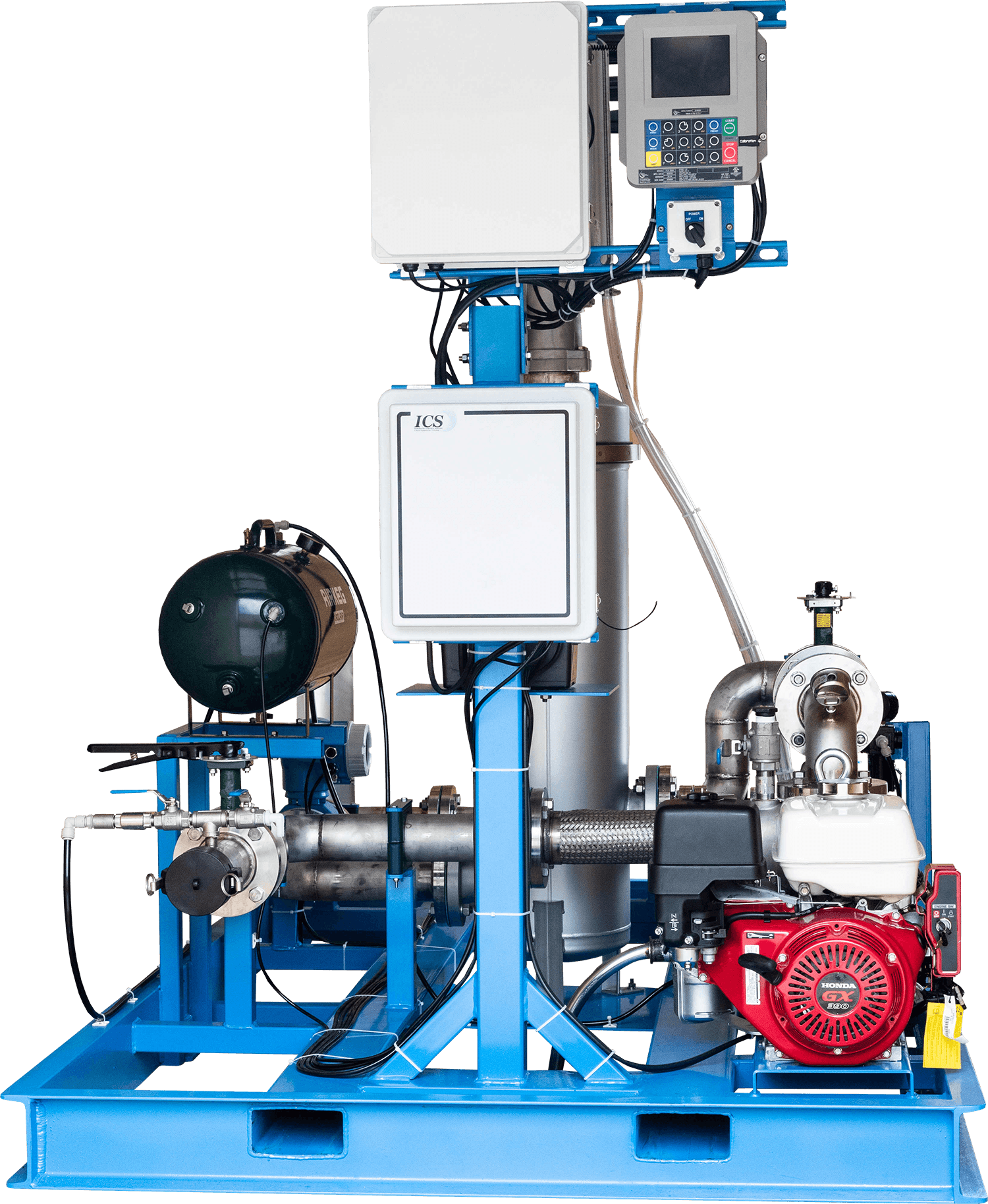

Transload directly from rail to transport trucks with these stationary version for warm climates or unit mouthed & heated trailer.

These systems come fully assembled and can be easily installed.

Meter Specifications:

• NTEP weights & measures DEF approved meter
• System flow rate of up to 250 GPM
• NTEP meter register & preset controller
• Electronic ticket printer
• Air eliminator

Pump Specifications:

• Industrial grade stainless steel self-priming centrifugal pump
• Gasoline powered engine pump drive for skid
• Diesel generator powered pump for enclosed trailer unit

Plumbing Specifications:

• Stainless steel filter housing, rated at 250 GPM with 1-Micron filter elements
• 3" Flanged (ANSI 150lb) inlet & outlet
• DEF-compatible pipes, hoses & fittings
