SERVICE CUSTOMERS EVEN IN EXTREME COLD

Since DEF requirements have come into effect, KleerBlue's systems have proven to be the industry's most reliable, even during the harshest winters.

• Each system features 2 heaters controlled by an automatic thermostat - a primary and a backup in case of heating failure
• Added heating fans ensure heat is evenly circulated throughout the unit
• The dispenser includes industrial-grade insulation to minimize the amount of time the heater needs to run.

GET THE MOST VALUE FOR YOUR MONEY

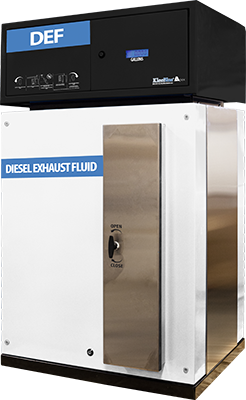

What makes the KleerBlue APEX different from the competition? The answer is in the details.

• The unit includes 22’ of usable hose length on a spring rewind hose reel for added reach.
• The insulation is FRP faced for added durability, longevity and ease of internal maintenance.
• The dispenser base includes hidden forklift access points for easy installation and/or site remodeling.
• Heating components and the hose and nozzle door can be removed for warm climates.
• The nozzle switch activates when the handle is removed for easy operation.

Electronics:

• Fuel management systems pulse output option with pulse rates up to 100:1
• Backlit digital LCD volume display (gallons or litres)
• Dispenser & pump are activated when nozzle door is opened. Transaction is complete when nozzle door is closed.
• Nonvolatile memory
• Built-in pump power relay
• Option: One non-resettable 7 digit electromechanical totalizer located in the bezel for inventory control (per side)

Hose & Nozzle:

• 25’  total hose length, 22’ usable length
• One spring rewind hose reel (per side)
• Accepts most stainless steel nozzles. Specify when ordering.

Supply Inlets:

• Single Sided: 3/4” NPT or hose barb
• Dual Sided: 1” NPT or hose barb

Filter:

• Stainless steel filter housing with 1 micron replaceable filters
• One filter per hose

Installation:

• One 20 amp circuit, and one 15 amp circuit required

Warranty:

• 1 year parts and labor

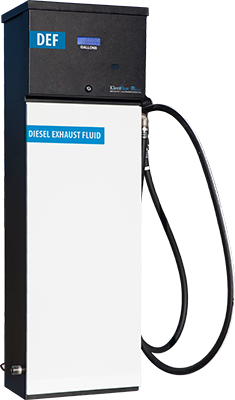

The KleerBlue REGAL was engineered to the highest quality standards to ensure DEF purity and low total cost of ownership. The KleerBlue REGAL’s proven electronics enable you to send a pulse output to your fleet management software to keep track of inventory, DEF consumption rates and more.

The dispenser integrates seamlessly with any of KleerBlue’s aboveground tanks as well as 3rd party above and underground tanks.

INTEGRATE INTO YOUR EXISTING OPERATIONS

Don’t spend extra money trying to make your DEF solution work with your current site infrastructure.

• Supply remotely or attach to aboveground fueling island-friendly tank such as KleerBlue’s Mini-Bulk Tanks.
• Send fueling information to your Fuel Management System (FMS) via programmable pulse output.
• Avoid extra expense with the built-in pump power relay that allows for remote pump activation.

AFFORDABlE

• By removing the insulation & heating components, the REGAL maintains its outstanding value, but at a lower price point.

SMALL FOOTPRINT & COMPACT DESIGN

Not only does the REGAL continue the sleek exterior design of the APEX, it offers a slimmer profile.

• The REGAL’s 18” width x 12” depth allows for placement options not available to other dispensers.

SOLID CONSTRUCTION

Every component of the REGAL was handpicked for it’s value and long -term ROI.

• The black and white steel weather-proof exterior is constructed of powder-coated galvannealed steel.
• Automatic nozzle power switch & electronic solenoid valve adds security and prevents leaks.

Standards & Approvals:

• ISO 22241 - 3 & 4
• PEI RP1100
• CSA Listed to UL-508 & CSA 22.2

Operating Temperature:

• -12˚F/-11˚C to 130˚F/54˚C

Size & Dimensions:

• 18” width x 12” depth x 58” height

Dispenser Cabinet:

• Base: Black powder-coated galvannealed steel
• Top Electronics Cabinet: Black powder-coated galvannealed steel.  Optional brushed stainless steel.
• Large Access Panel: White powder-coated galvannealed steel.

Meter:

• Stainless steel oval gear positive displacement meter
• Flow rates of up to 10 gpm/38 LPM

Electronics:

• Fuel management systems pulse output option with pulse rates up to 100:1
• Backlit digital LCD volume display (gallons or litres)
• Power switch on nozzle retainer
• Nonvolatile memory
• Option: Electronic solenoid valve for security & leak prevention
• Option: Non-resettable 7 digit electromechanical totalizer located in the bezel for inventory control

Hose & Nozzle:

• 10’  total hose length
• Accepts most stainless steel nozzles. Specify when ordering.
• Option: 15' hose with hose retractor

Supply Inlets:

• 3/4” NPT or hose barb
• Bottom, back or side inlet
• Option: Pump kit with self-priming pump, Micro Matic coupler & 5' suction hose

Filter:

• Stainless steel filter housing with 1 micron replaceable filters

Installation:

• One 15 amp circuit required
• Can directly operate up to 1 HP pump with additional 20 amp circuit

Warranty:

• 1 year parts and labor
