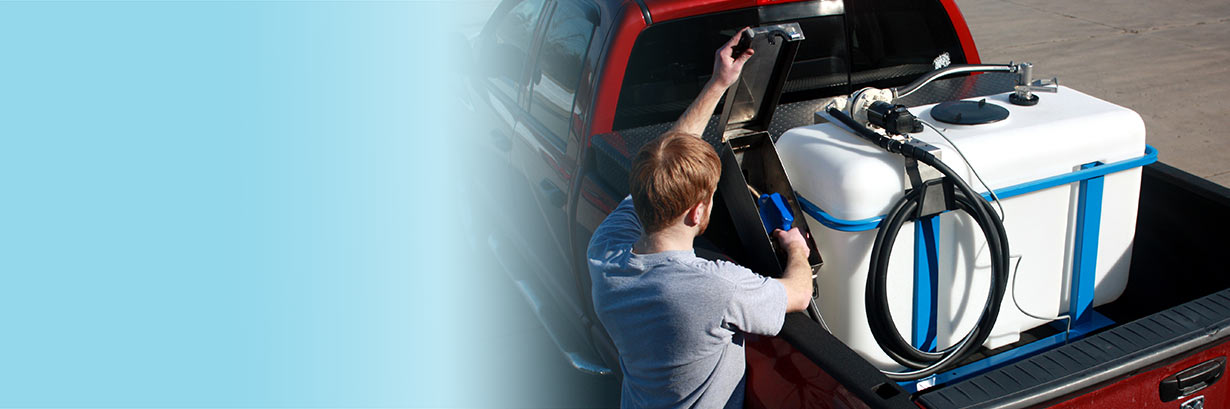

50 & 100 Gallon Truck Bed Tank & Dispensing System:
Compact. Portable. Easy-to-Use.
Easily place this 50 or 100 gallon system in a truckbed or on a trailer for filling of and on-road SCR-equipped equipment. The systems include a nozzle cover to house the stainless steel nozzle.
The system pumps can be connected to your vehicle via battery cable and clamps or permanently wired to your truck.
DIMENSIONS/SPECIFICATIONS
Size/Capacity Specifications:
- 50 Gallon: 26" depth x 56" width overall (48" base) x 35" height
- 100 Gallon: 26" depth x 56" width overall (48" base) x 39" height
Construction Specifications:
- Powder-coated steel frame with forklift slots
- Poly Tank
- Dust and weather-proof nozzle storage box
Supply Inlets:
- Closed Systems: Micro Matic stainless steel RSV dispense coupler
Pump & Meter Specifications:
- 12 Volt diaphragm pump
- Optional resettable meter
Dispensing Specifications:
- 20' of 3/4' Discharge hose
- Stainless steel automatic nozzle with swivel
230 Gallon Truck Bed Tank & Dispensing System:
Compact. Portable. Easy-to-Use.
Easily place this system in a truckbed or on a trailer for filling of and on-road SCR-equipped equipment. KleerBlue offers this 230 gallon system as well as several options to accommodate specific requirements.
Avoid getting dirt and other contaminants in your engines. The system includes a nozzle cover to house the stainless steel nozzle and a 1-micron filter.
The system pumps can be connected to your vehicle via battery cable and clamps or permanently wired to your truck.
DIMENSIONS/SPECIFICATIONS
Size/Capacity Specifications:
- 230 Gallon: 48" depth x 60" width overall (60" base) x 51" height
Construction Specifications:
- Powder-coated steel frame with forklift slots
- Poly Tank
- Dust and weather-proof nozzle storage box
Supply Inlets:
- Closed Systems: Micro Matic stainless steel RSV dispense coupler
- Open Systems: Camlock fill opening
Pump & Meter Specifications:
- 12 Volt diaphragm pump
- Resettable meter
Dispensing Specifications:
- 20' of 3/4' Discharge hose
- Stainless steel automatic nozzle with swivel
- Polyproylene filter with 1-micron cartridge
