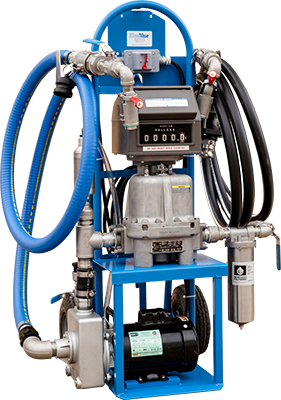

KleerBlue Top Withdrawal 2-Wheel Carts:
Weights & Measures Approved Portable DEF Dispensing Carts
KleerBlue's 2-wheel portable carts maximize portability and versatility. These carts are designed to pull DEF from drum and totes/IBCs to customer tanks and/or directly into vehicles.
Avoid contamination a maintain a closed system with KleerBlue's top withdrawal 2-wheel portable cart systems. These carts may pull DEF from either the top or bottom outlets of totes/IBCs.
DIMENSIONS/SPECIFICATIONS
Meter Specifications:
- Weights & Measures approved meter (US & Canada)
- System flow rates of 2 to 20 GPM (22 for non-weights & measures cart without filter)
- TCS 682 stainless steel piston meter
- Resettable register, ticket printer, & air eliminator
- Option: TCS 3000 electronic register & bluetooth ticket printer
- Option: non-weights & measures stainless steel turbine meter (Non-resale applications only)
Pump Specifications:
- 1 1/2" stainless steel self-priming pump
- DEF compatible seal
- 110 volt 1 phase TEFC motor
- 20' electrical cord with pump power on/off switch
Plumbing Specifications:
- DEF-compatible stainless steel valves
- 10' of 1 1/2" suction hose with 2" female camlock
- Stainless steel air eliminator
- Option: Stainless steel filter housing & 1-Micron cartridge (reduces max flow rate to 18 GPM)
Dispensing Specifications:
- 20' of 1" discharge hose with 1 1/2" female camlock
- Hose hangers
- 2 Micro Matic RSV fill couplers for closed system
- 1 1/2" Polypropylene fill nozzle with male camlock
Construction Specifications:
- Pre-assembled and pre-wired
- Mounted on hand cart with 2 pneumatic tires
- 28" wide x 22" long x 50" tall

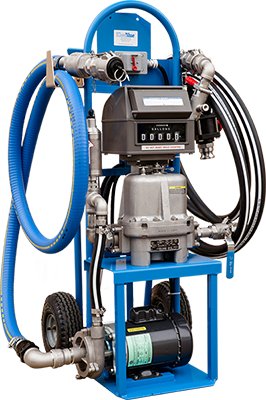

KleerBlue Bottom Withdrawal 2-Wheel Carts:
Weights & Measures Approved Portable DEF Dispensing Carts
KleerBlue's 2-wheel portable carts maximize portability and versatility. These carts are designed to pull DEF from drum and totes/IBCs to customer tanks and/or directly into vehicles.
Achieve a faster flow rate with KleerBlue's bottom withdrawal 2-wheel portable cart systems. These carts may pull DEF from ONLY the bottom outlets of totes/IBCs.
DIMENSIONS/SPECIFICATIONS
Meter Specifications:
- Weights & Measures approved meter (US)
- System flow rates of 2 to 28 GPM (39 for non-weights & measures cart without filter)
- TCS 682 stainless steel piston meter
- Resettable register, ticket printer, & air eliminator
- Option: TCS 3000 electronic register & bluetooth ticket printer
- Option: non-weights & measures stainless steel turbine meter (Non-resale applications only)
Pump Specifications:
- 1 1/4" x 1" stainless steel straight centrifugal pump
- DEF compatible seal
- 110 volt 1 phase TEFC motor
- 20' electrical cord with pump power on/off switch
Plumbing Specifications:
- DEF-compatible stainless steel valves
- 10' of 1 1/2" suction hose with 2" female camlock
- Stainless steel air eliminator
- Option: Stainless steel filter housing & 1-Micron cartridge (reduces max flow rate to 21 GPM)
Dispensing Specifications:
- 20' of 1" discharge hose with 1 1/2" female camlock
- Hose hangers
- 2 Micro Matic RSV fill couplers for closed system
- 1 1/2" Polypropylene fill nozzle with male camlock
Construction Specifications:
- Pre-assembled and pre-wired
- Mounted on hand cart with 2 pneumatic tires
