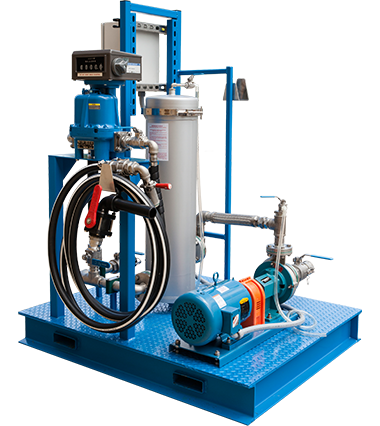

Transport/Drum & Tote(IBC) Filling:
Dual Purpose Stationary Filling System
This filling system is equipped with Weights and Measures approved meter for filling Drums & Totes at 2-50 GPM with precision and accuracy.
It also allows for bypassing the meter to fill transports at rates of up to 150 GPM! This dual-purpose system comes fully assembled on a forklift compatible skid and can be easily installed.
Dimensions/Specifications
Meter Specifications
- Weights & measures approved meter
- System flow rates of 2 to 50 GPM
- TCS 682 stainless steel piston meter
- Resettable register
- Stainless steel straight centrifugal pump
- Capable of 150 GPM at 75 feet of head
- DEF compatible seal
- 5 HP 220v 1 or 3 phase TEFC motor
- Pre-assembled and pre-wired
- 4'x4' Powder-coated frame (6ft high system)
- Forklift compatible
Plumbing Specifications
- 20' of 1 1/2" Suction hose
- 1 1/2" Transport fill line bypassing the meter
- Manual valve to control discharge flow rate to drum & tote
- 2" Flanged stainless steel filter with seven 1-micron absolute filter cartridges
- DEF-compatible stainless steel valves, camlocks, & plumbing
- 25' of 1 1/2" Discharge hose for transport fill with stainless steel NPT ends
- 25' of 1" Discharge hose for drum & tote fill
- 1 1/2" Poly fill nozzle & Micro Matic RSV fill valve
- Hose hangers

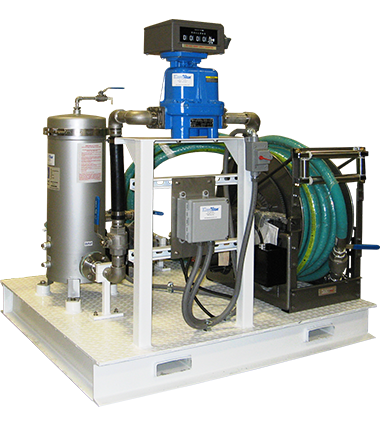

Drum & Tote(IBC)
Stationary Filling System
This filling system is equipped with Weights and Measures approved meter for filling Drums & Totes at 2-28 GPM with precision and accuracy.
This system comes fully assembled on a forklift compatible skid for easy installation. All wetted parts are DEF compatible and sealed for a contaminant-free environment.
Dimensions/Specifications
Meter Specifications
- Weights & measures approved meter
- System flow rates of 2 to 28 GPM
- TCS 682 stainless steel piston meter
- Resettable register
- 1 1/2" Stainless steel self-priming pump
- DEF compatible seal
- 1 HP 110v 1 phase TEFC motor
- Electrical power control panel switch (10 amp circuit required)
- Pre-assembled and pre-wired
- 4'x4' Powder-coated frame (6ft high system)
- Forklift compatible
Plumbing Specifications
- 20' of 1 1/2" Suction hose
- Manual valve to control discharge flow rate to drum & tote
- Stainless steeel filter with five 10-micron absolute filter cartridges
- DEF-compatible stainless steel vavles, camlocks, & plumbing
- 110v Electric-rewind hose reel
- 50' of 1 1/4" Discharge hose
- 1 1/2" Poly fill nozzle
- 1 1/2" Poly fill nozzle & Micro Matic RSV Fill Valve
